Line · UndergroundUnderground Transfer Plant
Low-headroom secondary plant for decline and shaft-fed ore.
Applicable products & materials
Products
A single −40 mm product to the skip or decline conveyor.
Materials
Development and stope ore, −300 mm from the underground jaw.
Process steps
01
Envelope

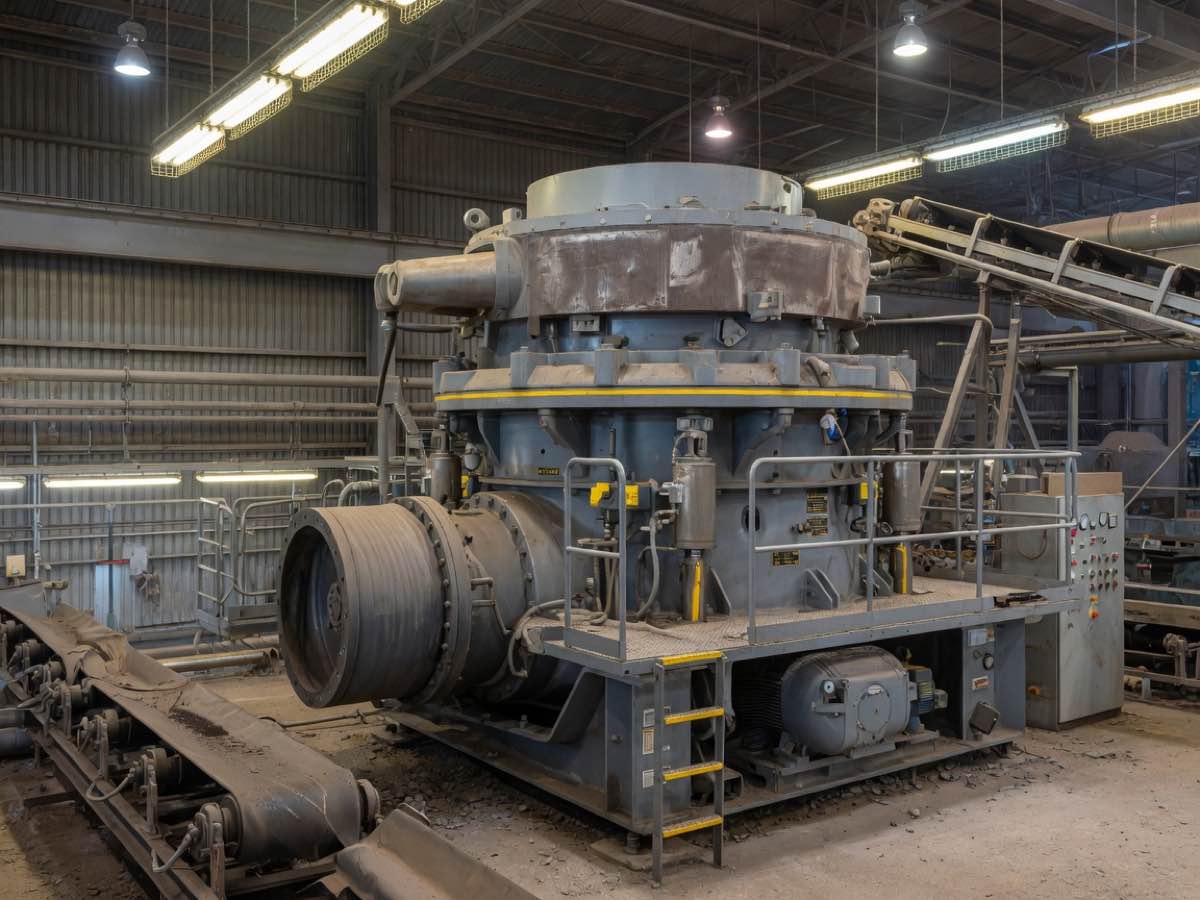

Mine issues the heading drawing; Ridgecast fits the cone and screen to it.
02
Delivery scope
Design — circuit designCustom build — custom fabricationInstall — erectionCommission — commissioning
Gallery
Send the heading drawing.
The envelope drawing is the first input. Ridgecast fits the cone and screen to it and returns a first view within three working days.
